Tanks

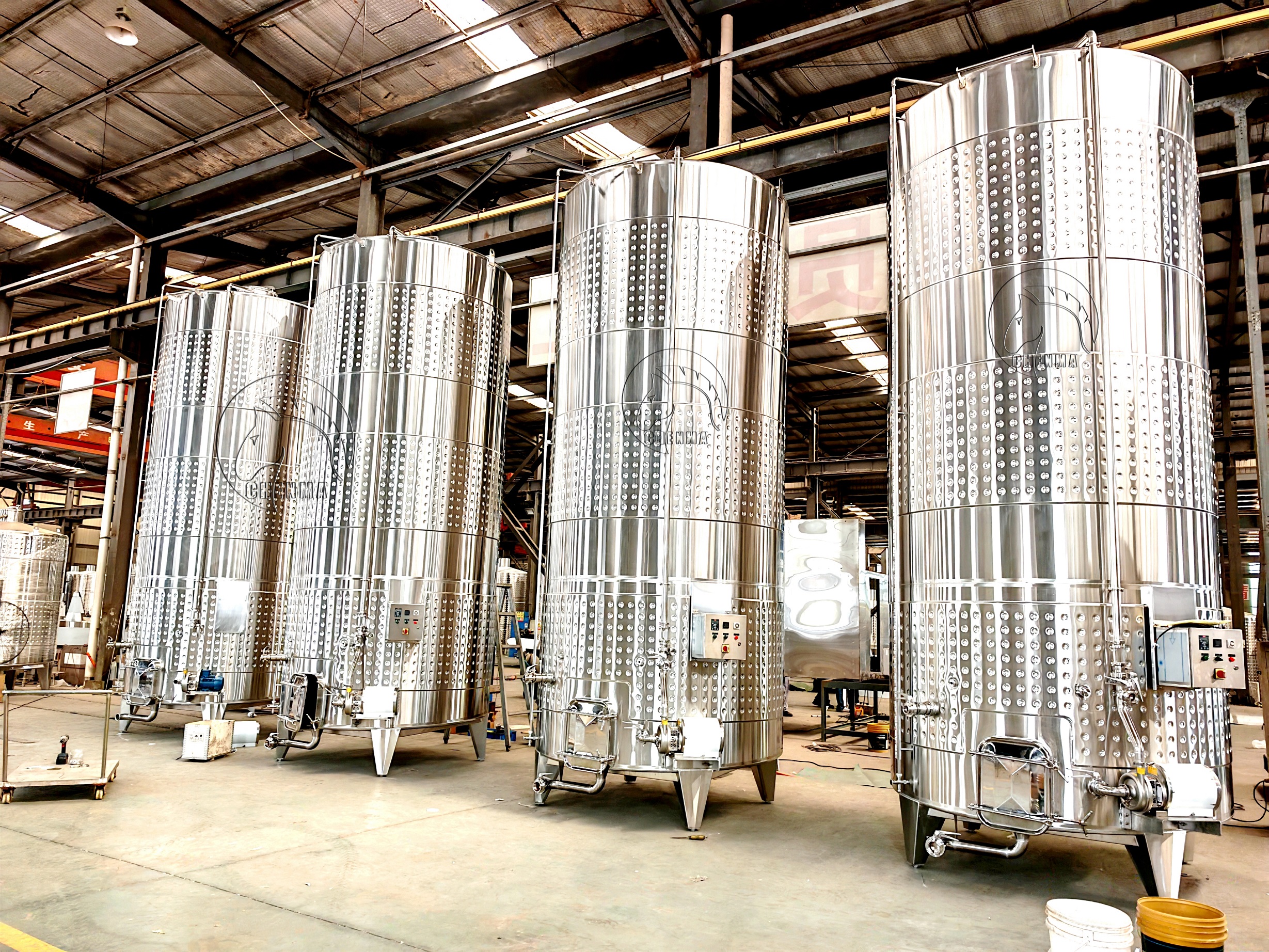

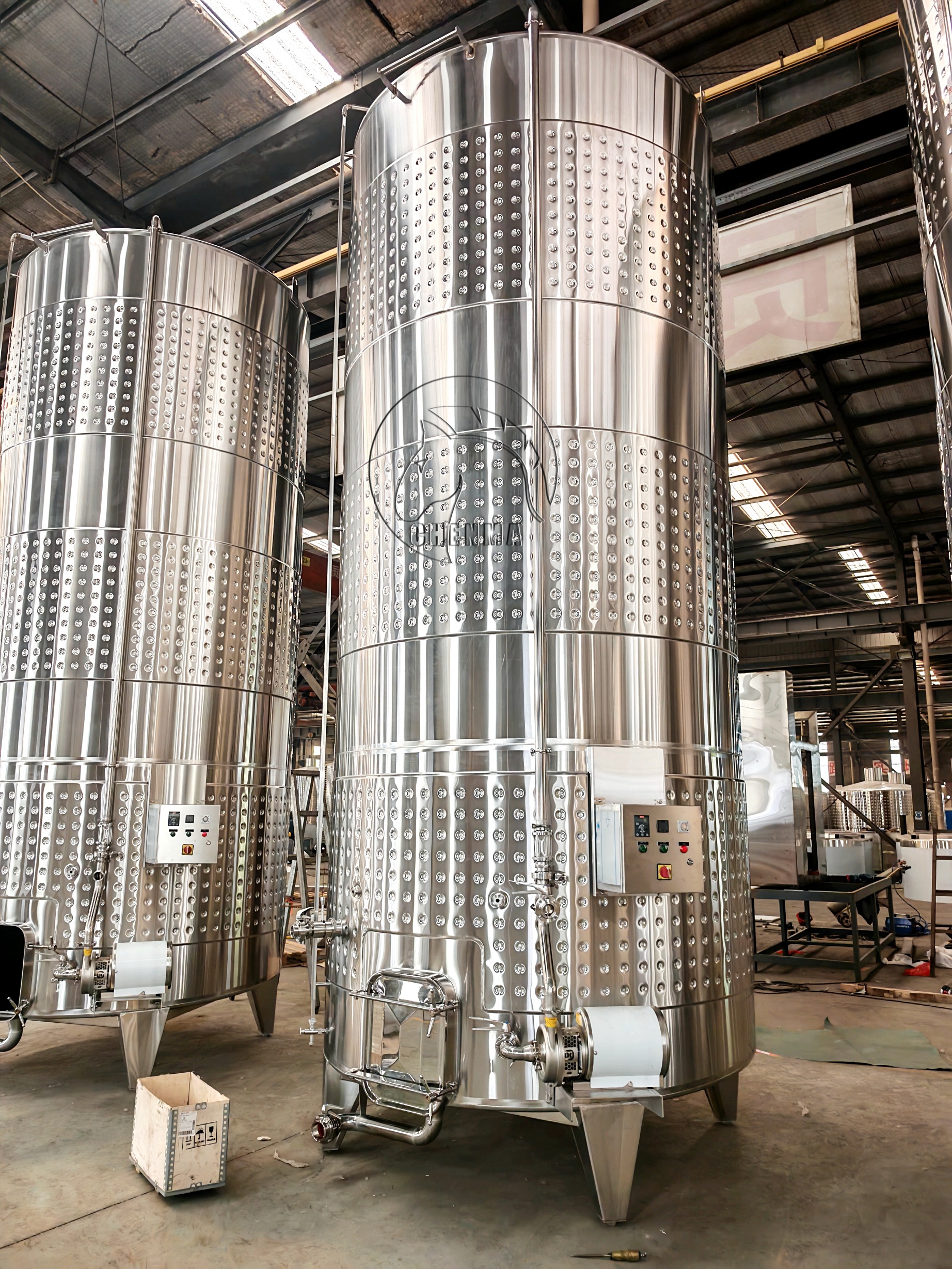

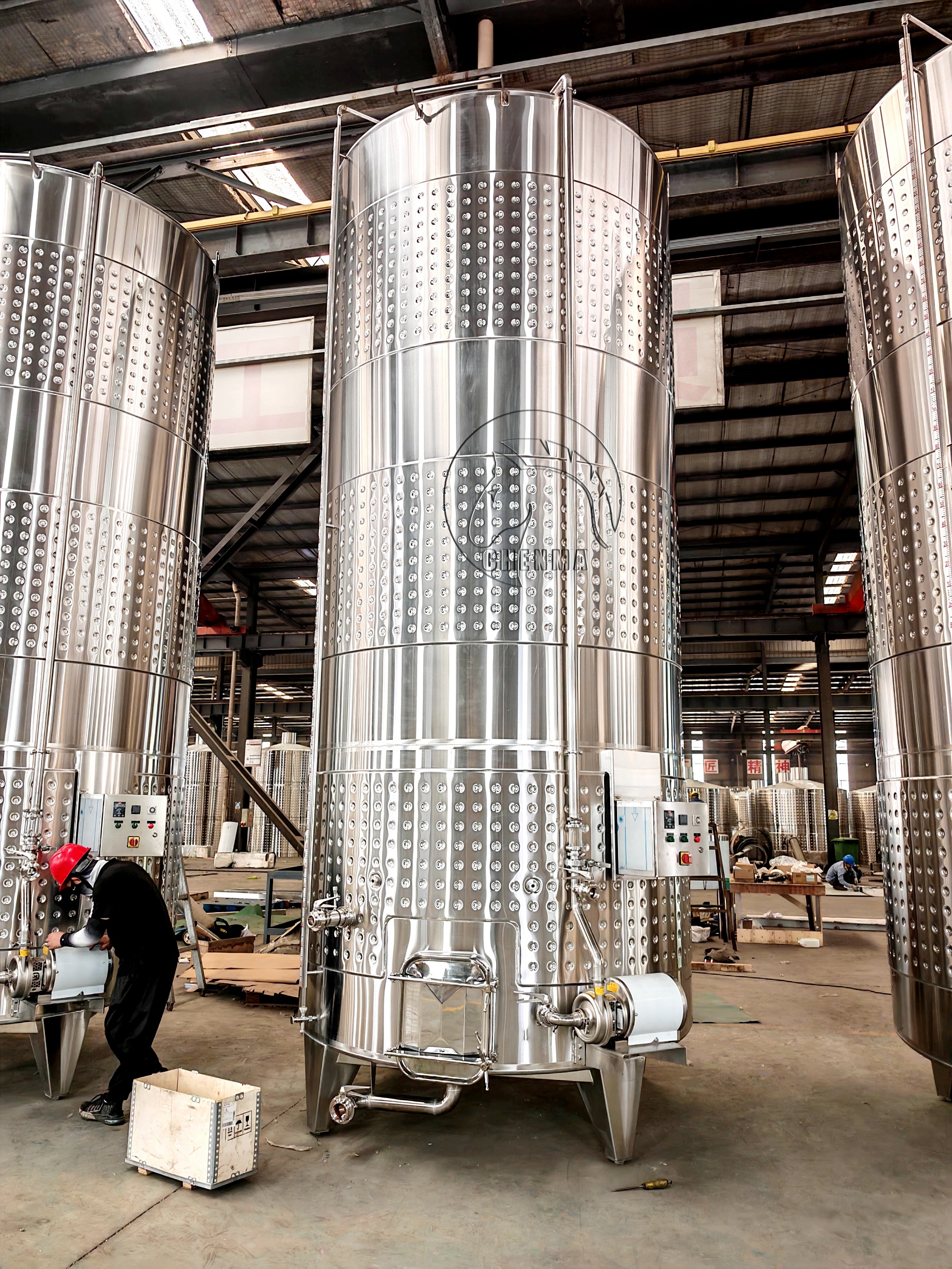

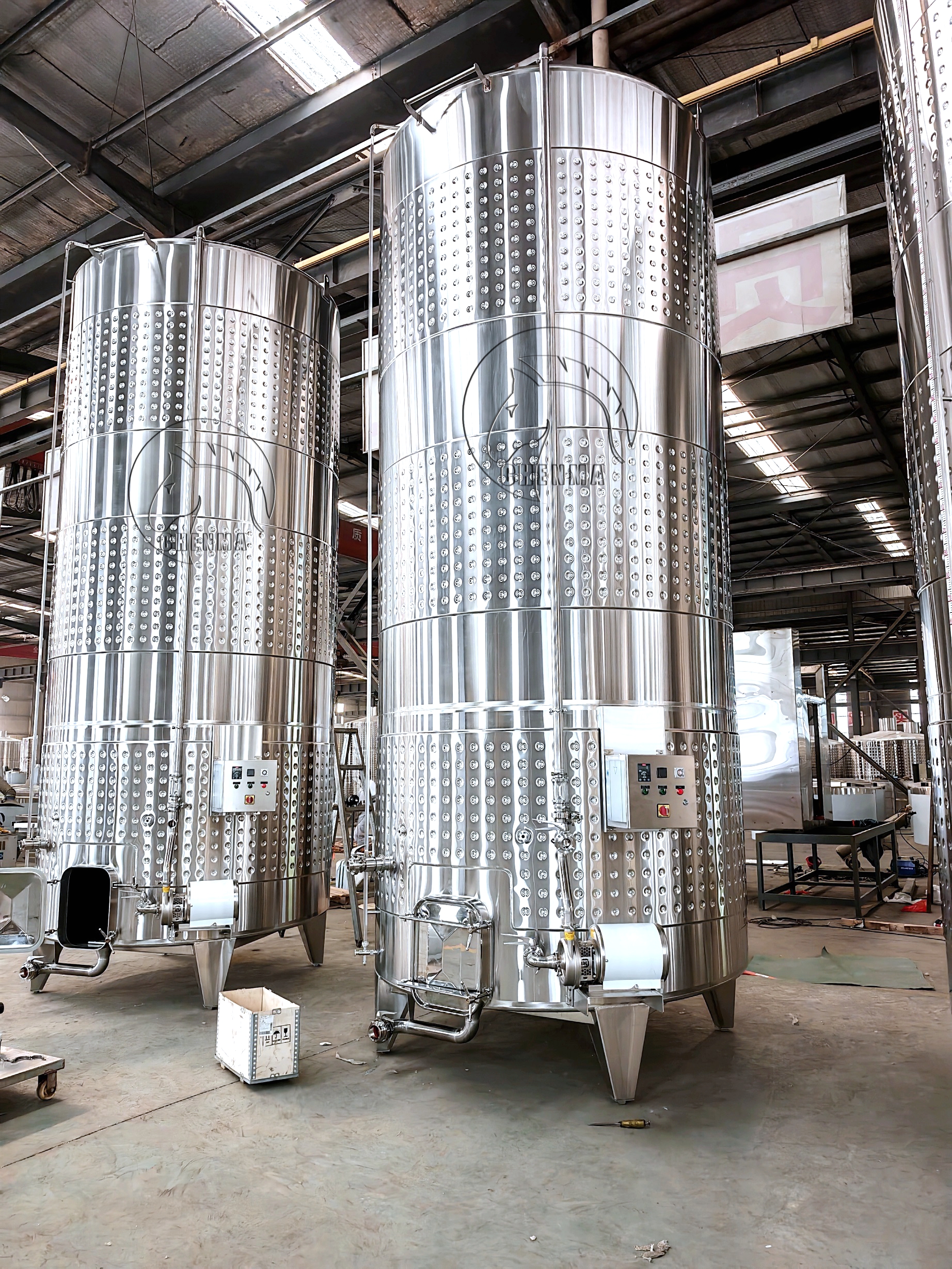

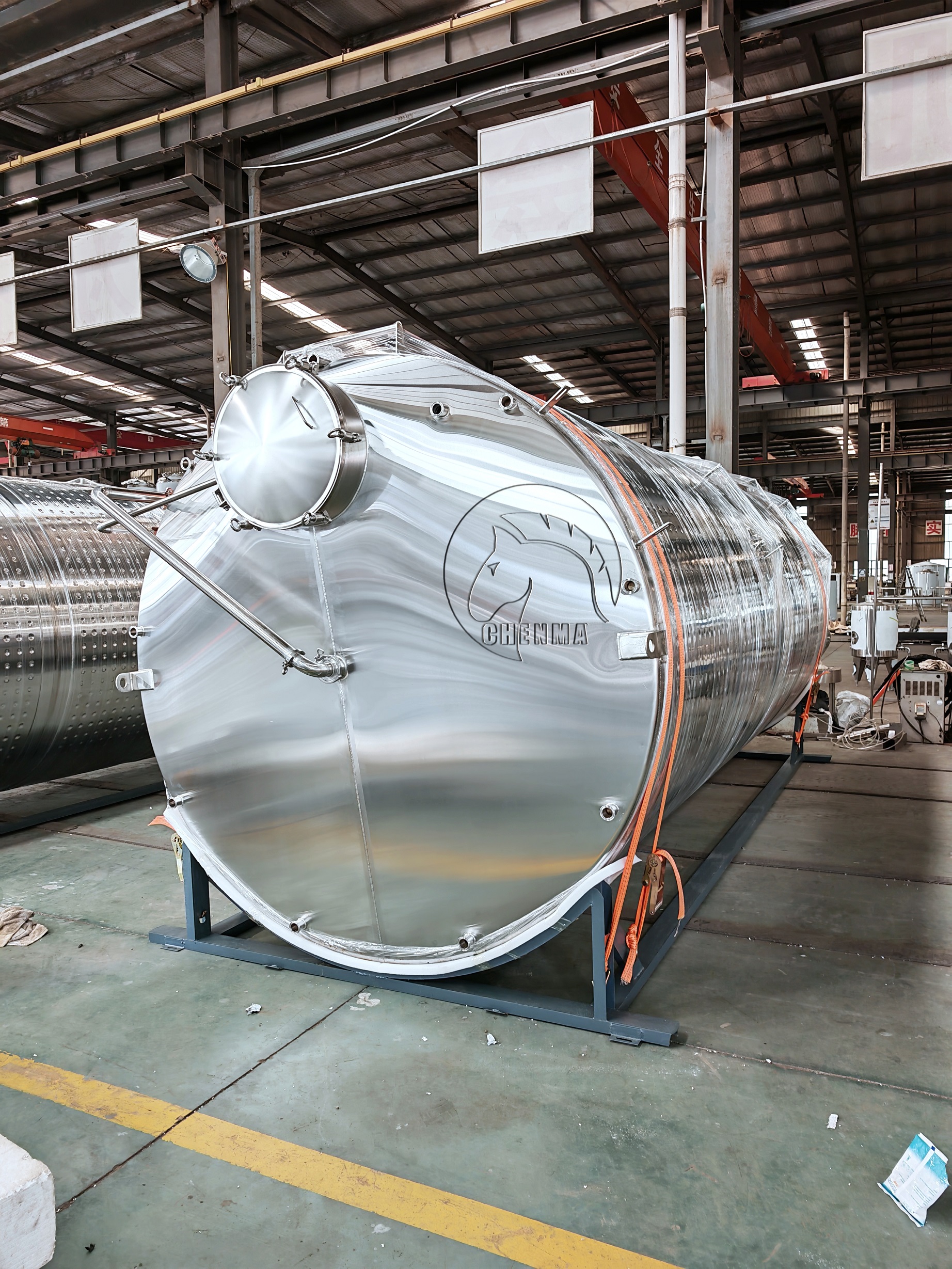

Specification for 20000L pump-over red fermentation tank as follows: 1.Sanitary Stainless steel 304, thickness of material:4mm; 2.Effective capacity: 20,000L; 4.Cylinder shape ; 5.Conical top; 6.Centric top with 500mm top manway; 7.0.75"Sample valve; 8.2"Wine outlet and drain outlet assembly; 9.2"racking valve; 10.Cooling jacket and thickness of cooling jacket is 1.5mm; 11.Fully welded cladding; 12.Side rectangle manway, the size for the rectangle manway is 530mmx430mm; 13.Diameter for the wine fermenter is 2250mm and height for the tank is 6150mm; 15.PT100 temperature probe; 16.1"Glycol inlet/outlet; 17.2” stainless steel piping for pump over; 18. 2″ Breather valve; 19.Sloped flat bottom; 20.Filter Screen for inside of tank; 21.CIP spray ball; 22.Bimetallic thermometer; 23.Stainless steel legs with screw assembly to adjust leg height. Please contact us for more details! Shandong Chenma Machinery Co., Ltd Email: [email protected] Cel/Whats App:008613789827830 Website: http://www.sdchenma.com

The specification for 800L and 1000L and 2000L and 3000L and 5000L floating lid wine tank with forklift as follows: 1.Sanitary Stainless steel 304; 2.Effective capacity: 800L and 1000L and 2000L and 3000L and 5000L; 3.Floating lid-with inflatable gasket and pump; 4.Flotaing lid with stainless steel 316L, and thickness is 1mm; 5.Lift arm; 6. 0.75’’Sample valve; 7.Wine outlet and drain outlet assembly; 8. Dimple cooling jacketor without cooling jacket; 9. Fully welded cladding; 10.Side rectangle manway, size:430mmx330mm 11.RTD Probe; 12. 1''Glycol inlet/outlet 13.2″ Breather; 14.Sloped bottom; 15.Bimetallic thermometer; 16.Tank can with fork slots, it is for easy handling and transport with a forklift; 17.Stainless steel legs with screw assembly to adjust leg height. Please contact us for price and details! Shandong Chenma Machinery Co., Ltd Email: [email protected] Cel/Whats App:008613789827830 Website: http://www.sdchenma.com
